Rhinoplasty and the Jackshaft Support

(44 days until the 2012 WHPSC)

The nose tapered a little too quickly, so a little "augmentation" was necessary using leftover foam from Dad's Red Bull rock crawler project

All the foam strips in place

Half a roll of masking tape to reinforce everything

... and the other side

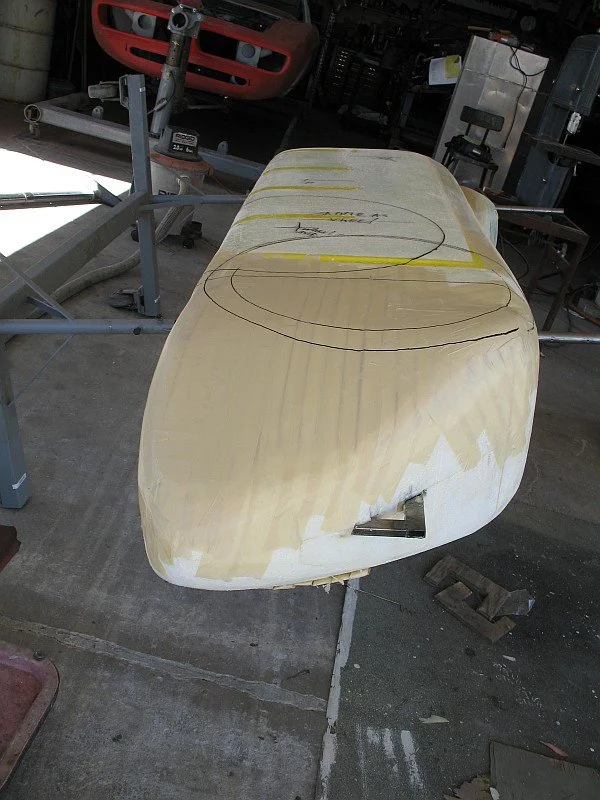

Augmentation complete

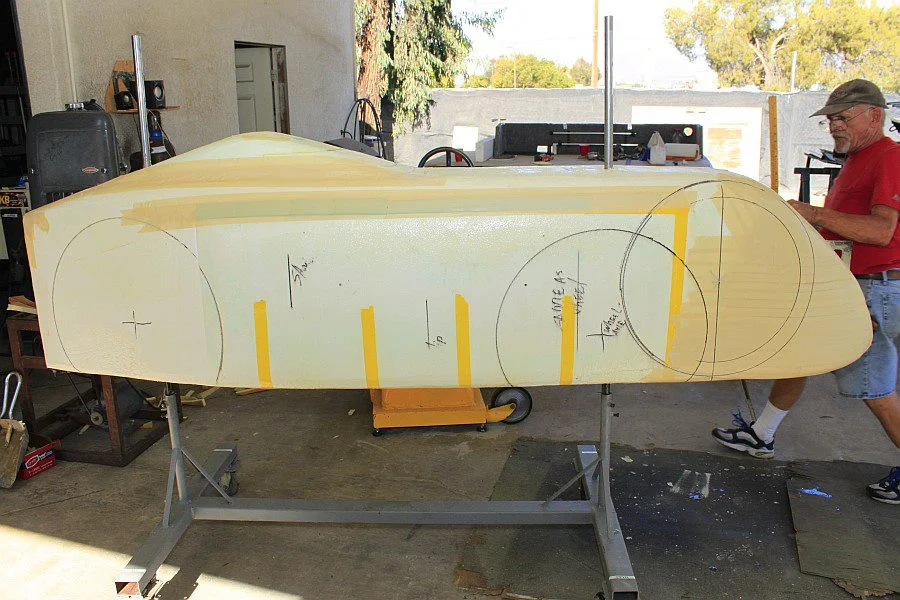

Side shot

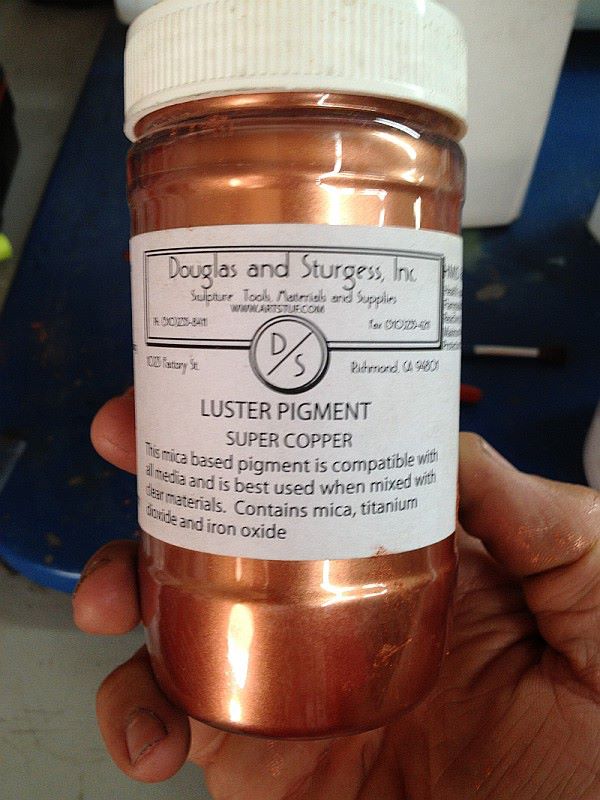

To make it easier to see where the second coat of epoxy was applied, we mixed in copper pigment.

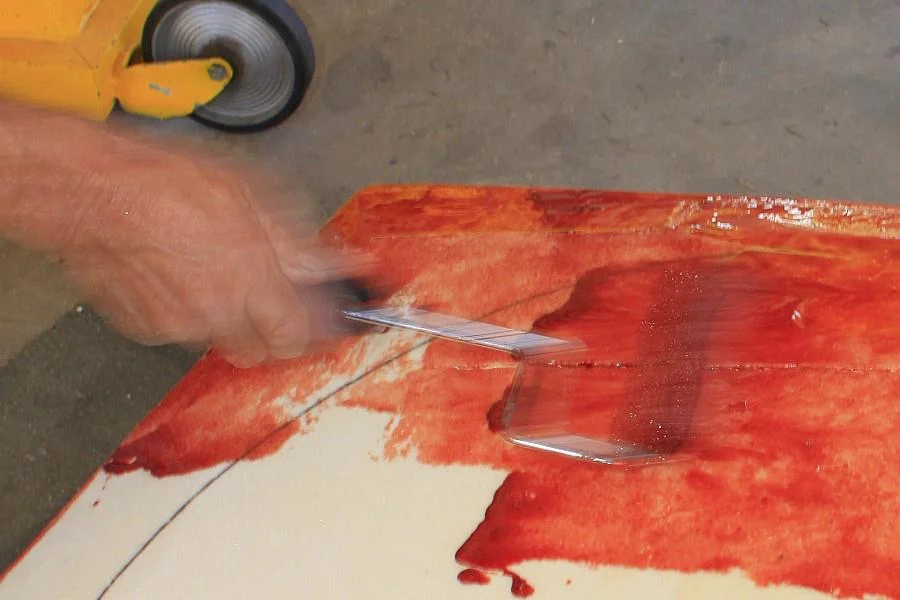

Applying pigmented epoxy

As dad said, looks like it hit a cow at 70 MPH

Annie is unimpressed

CAD?!! We don't need no stinkin' CAD!!!

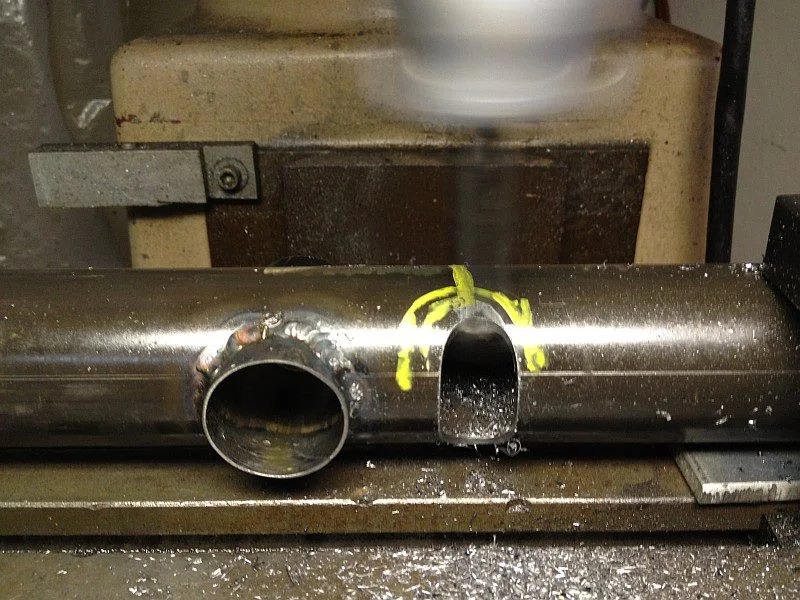

More boring

Checking the fit of the jackshaft support
